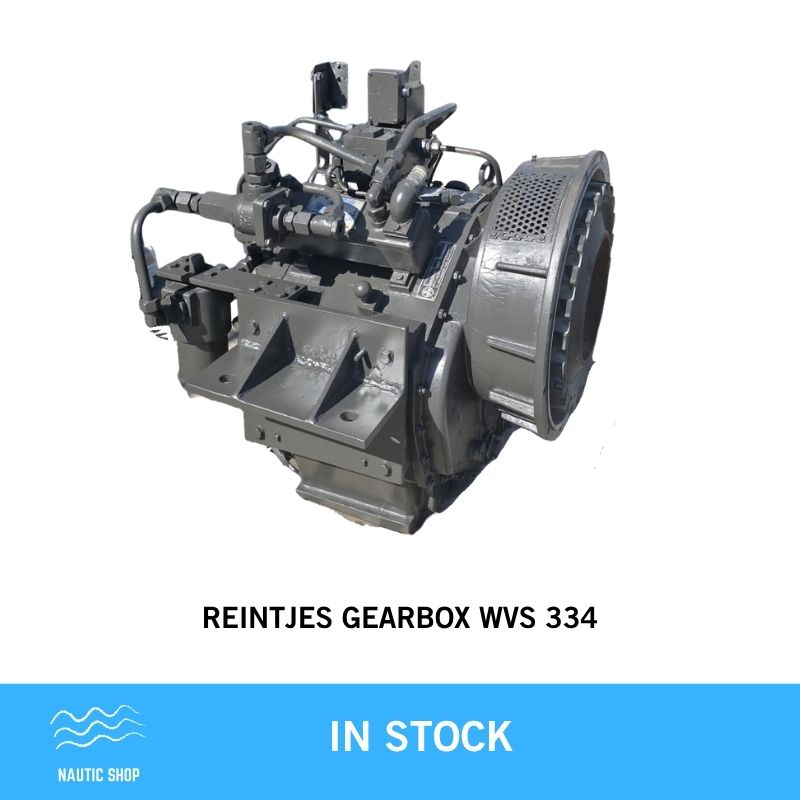

REINTJES GEARBOX WVS 334
REINTJES GEARBOX WVS 334 - Image 2

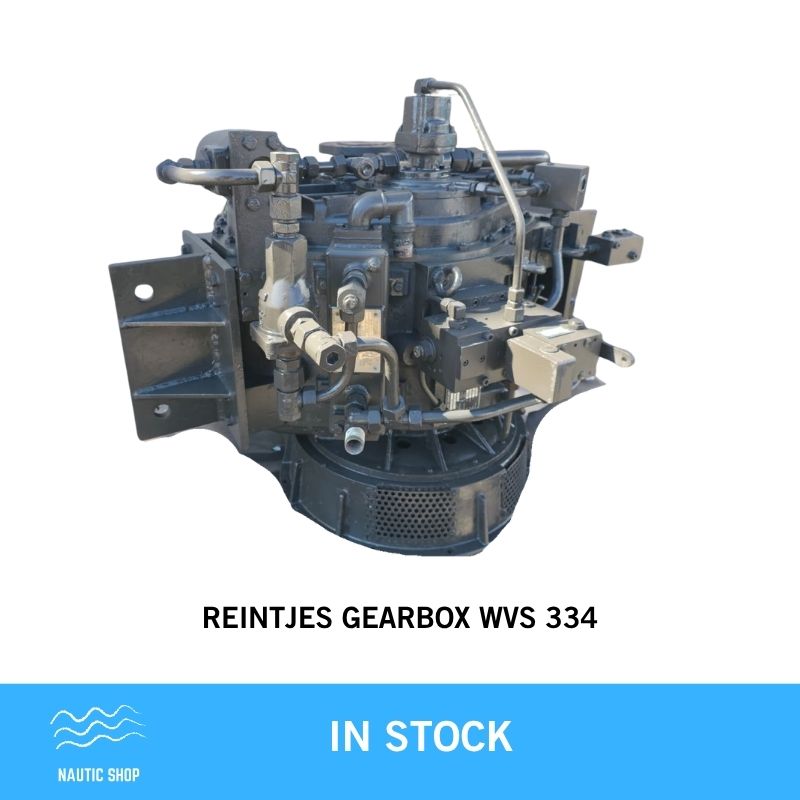

REINTJES GEARBOX WVS 334 - Image 3

REINTJES GEARBOX WVS 334

✅ Manufacturer: Reintjes

✅ Model: WVS 334

✅ Power: 1,115 kW

✅ Input speed: 2,300 RPM

✅ Reduction ratio: 1.828:1

✅ Year of manufacture: 2005

✅ Controls: Electrical

✅ Rotation direction: CW in / CCW out

✅ Configuration: U-Drive, input and output on the same side

✅ Oil cooler: Yes

✅ Dimensions (L × W × H): 80 × 80 × 90 cm

✅ Weight: 425 kg

Category:

Description

Reintjes gearbox WVS 334. Used, in excellent condition.

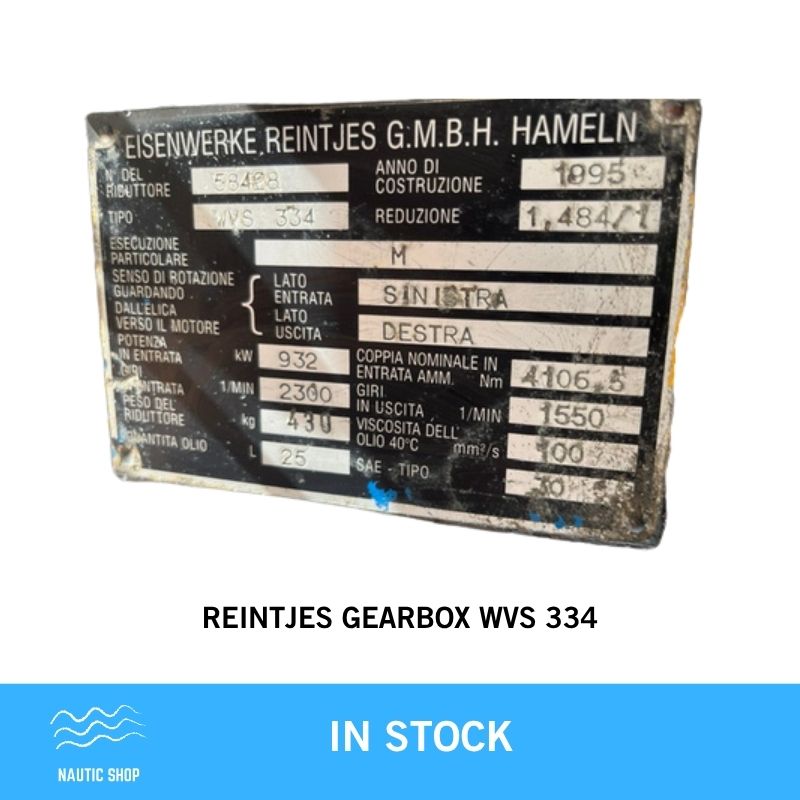

Built by Eisenwerke Reintjes G.m.b.H. Hameln in 1995, the gearbox features a 1.484:1 reduction ratio, with an input power of 932 kW and a maximum speed of 2,300 rpm. The permitted nominal input torque is 4,106.5 Nm, while the output speed is 1,550 rpm. The gearbox weighs 430 kg and requires approximately 25 litres of oil.
