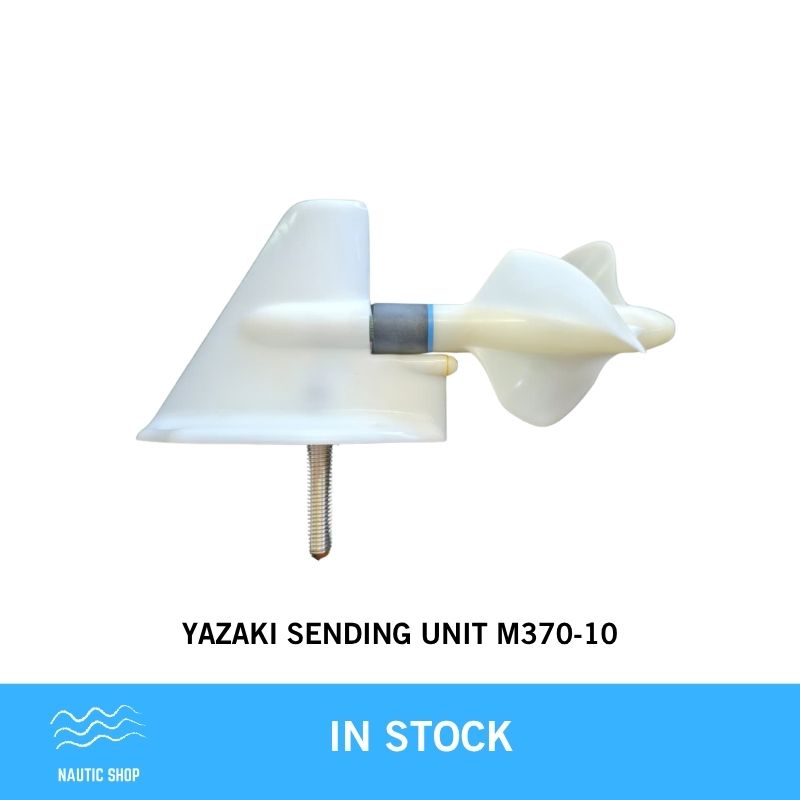

YAZAKI SENDING UNIT M370-10

The transducer must be securely mounted under the hull in an area free from turbulence.
Drill a hole, insert the threaded bolt, and tighten firmly. Use the mounting bracket holes to prevent torsion.

Requires an external 12 V power supply.

Wiring:

Green wire → blue
Other green wire → yellow (connected to the ignition switch)
Red wire from the bulb → panel light switch
Other red and black wires → ground

The instrument must be installed on the panel (Ø 82 mm hole) using a rubber anti-vibration mount.

Description

Yazaki sending unit M370-10.

Yazaki Group is a Japanese company and a global leader in the production and supply of electrical and electronic components, with operations in over 45 countries.
